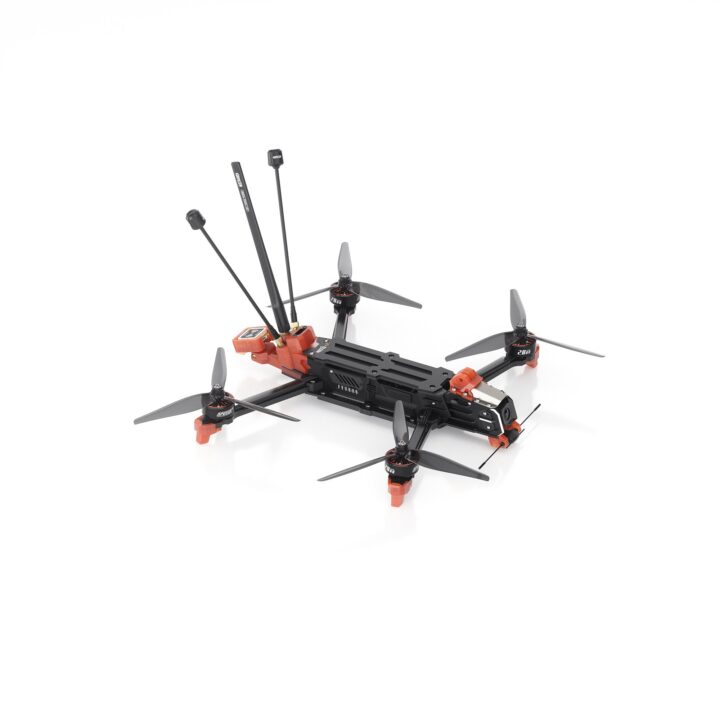

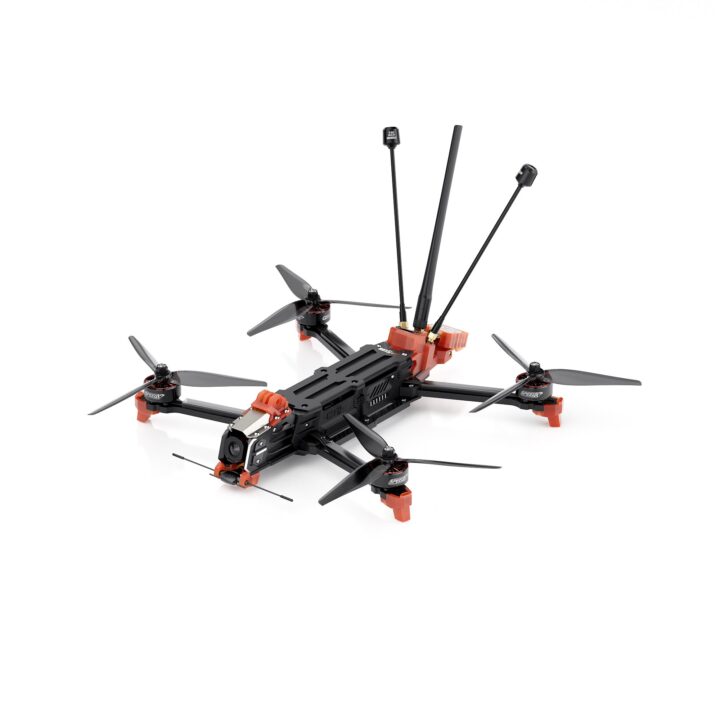

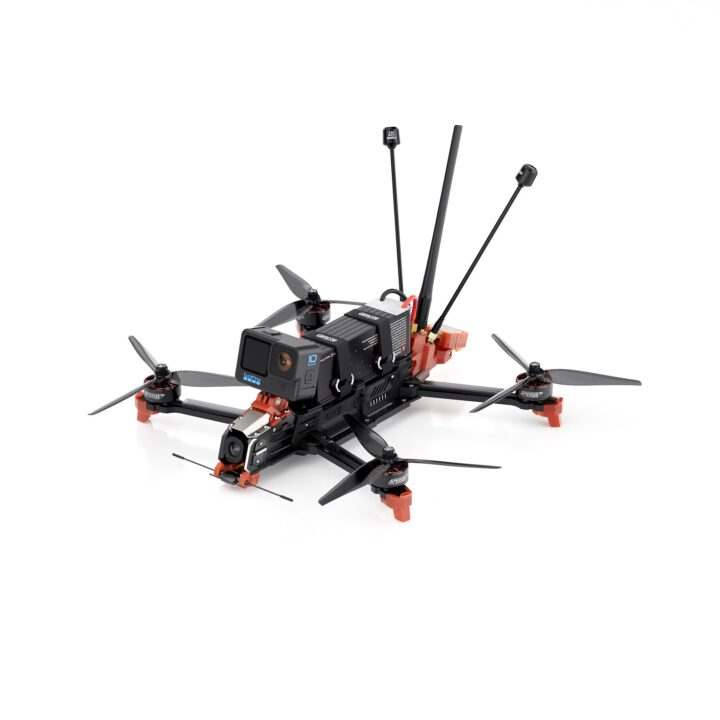

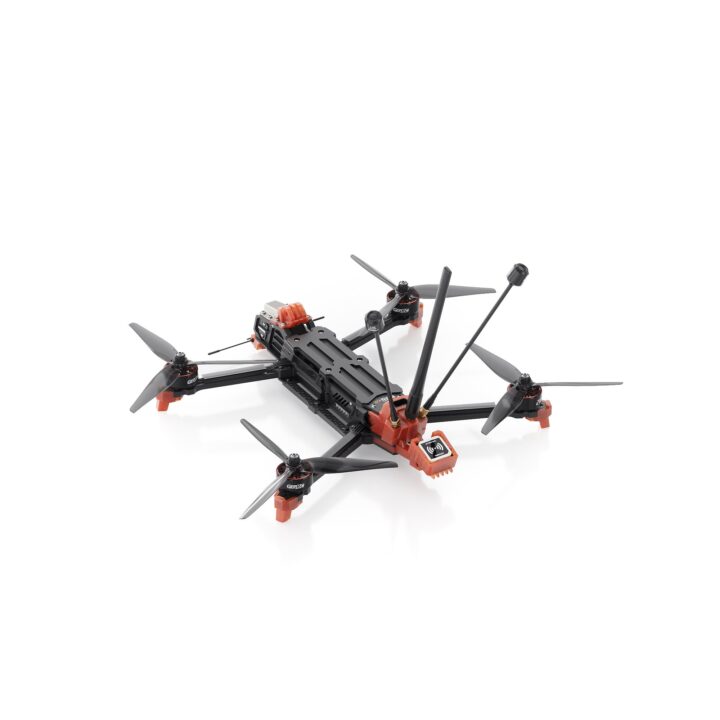

GEPRC MOZ7 V2 O4 Pro Long Range FPV Drone

The GEPRC MOZ7 V2 O4 Pro is a high-performance, long-range FPV platform built for professionals and enthusiasts who demand both endurance and cinematic quality. With robust build materials, cutting-edge flight components, and DJI’s top-tier O4 transmission system, the MOZ7 V2 is engineered for serious exploration and videography.

💡 Core Design Philosophy

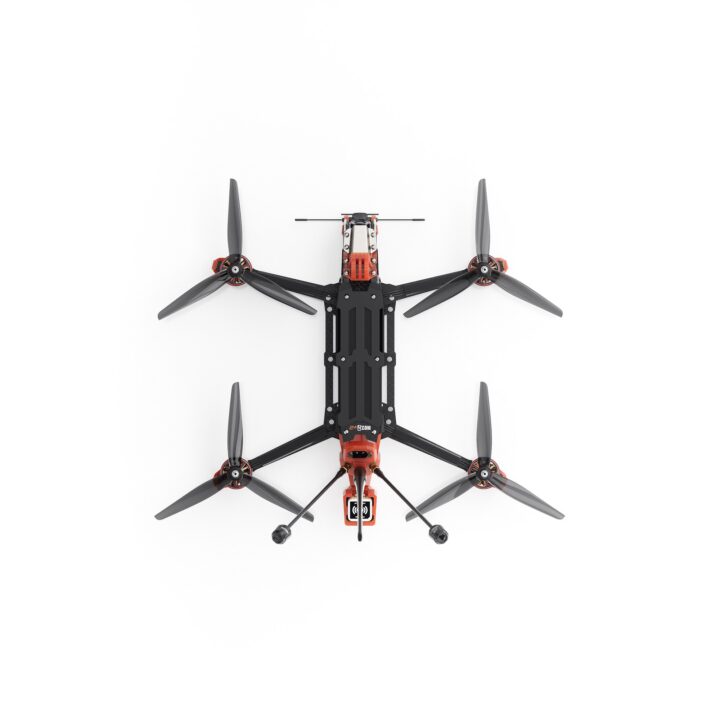

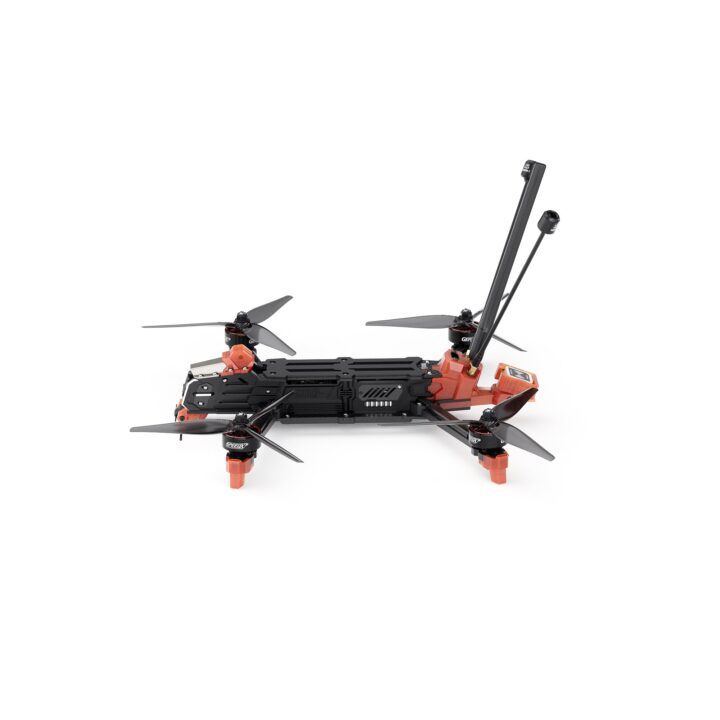

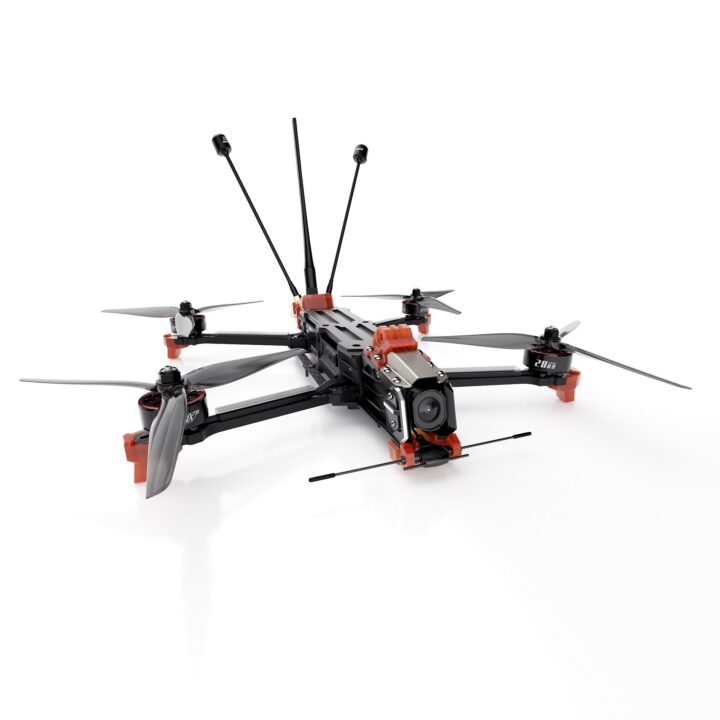

At its heart, the MOZ7 V2 is built around a wide 336 mm wheelbase frame. The structure is a hybrid of strength and vibration isolation — 2.5 mm top and bottom plates, a 3 mm mid plate, and ultra-rigid 6 mm arms. This structure isn’t just crash-resistant; it’s tuned for ultra-stable video capture and efficient airflow, even in windy or high-altitude environments.

The frame’s layout also features dual battery mounting options (top or bottom) depending on your flight preference: better agility or longer range. It also integrates carbon braces and an aerodynamic design to reduce wind drag during extended flights.

🧠 Flight Controller & Electronics

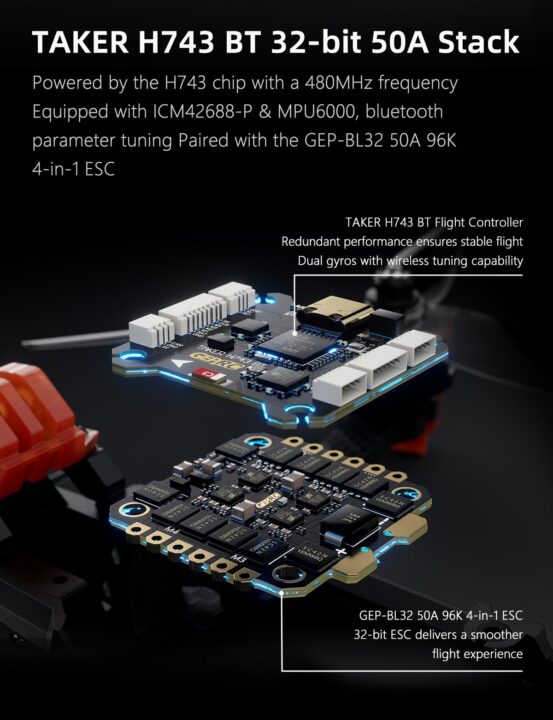

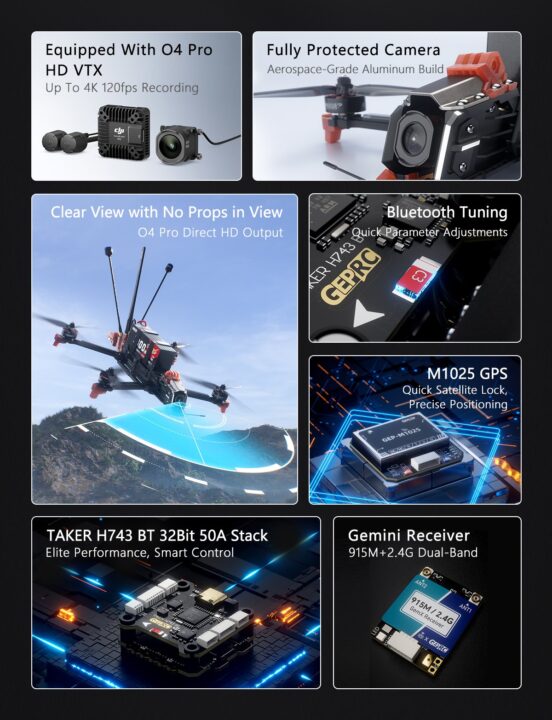

At the center of the flight system is the TAKER H743 BT flight controller, a powerful STM32H743 processor-based board with built-in Bluetooth and Blackbox. It comes with dual gyros — MPU6000 and ICM42688-P — providing both reliable stability and precision motion data.

The integrated 4-in-1 50A ESC uses BLHeli_32 firmware, allowing for smooth motor control, reliable current handling, and telemetry feedback. This setup supports demanding long-range and high-speed flying without overheating or noise issues.

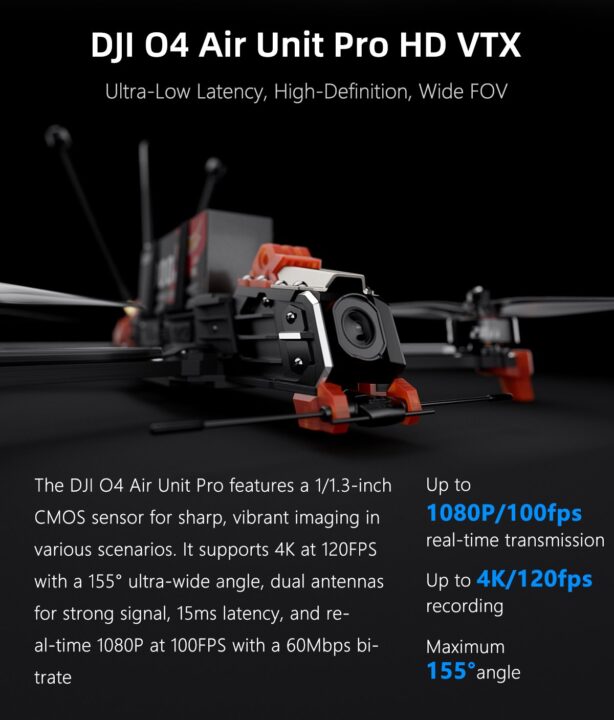

🎥 DJI O4 Air Unit Pro – Cinema-Grade Vision

The DJI O4 Air Unit Pro brings a huge upgrade in video performance. It features:

• A 1/1.3" CMOS sensor

• Up to 4K at 120fps video recording

• Real-time transmission at 1080p/100fps or 4K/60fps with low latency

• Superb low-light performance with wide dynamic range

This means the MOZ7 V2 is not just for hobbyists—it’s a viable tool for professional aerial filmmakers, real estate videographers, and outdoor explorers looking to document pristine landscapes with clarity and depth.

The camera is also soft-mounted with vibration isolation, ensuring jello-free footage even during aggressive maneuvers or windy flights.

⚡ Power System & Motors

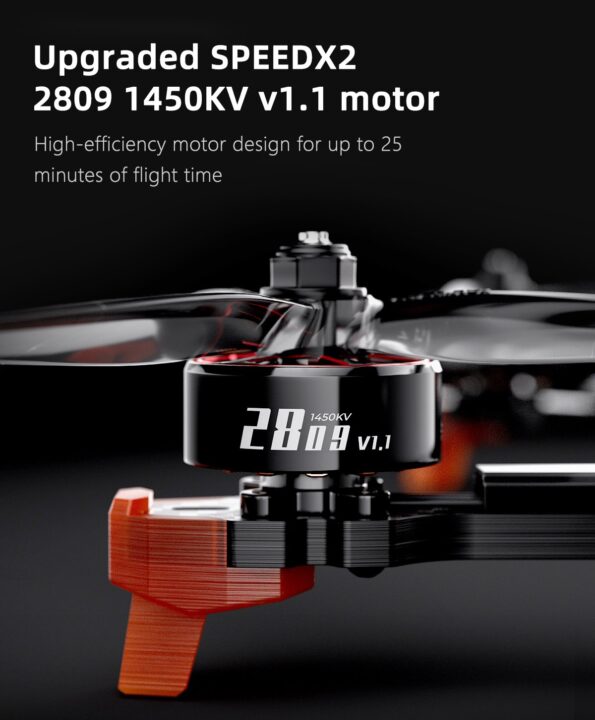

GEPRC has equipped this drone with SPEEDX2 2809 1450KV motors—specifically selected for balancing endurance with thrust efficiency. These motors are optimized for 7.5-inch props, delivering strong torque and stable cruising at low RPMs, which translates to less vibration and more battery conservation.

You can expect smooth throttle response, even under load, making this drone ideal for cinematic flight paths or high-speed dives with confidence.

🛰️ Navigation & Control: GPS + TBS Nano RX

The built-in GEP-M1025 GPS ensures fast satellite lock, accurate positioning, and reliable "Rescue Mode" operation through Betaflight or INAV. This is essential for long-range pilots who often fly over terrain without line of sight.

This version comes with the TBS Nano RX receiver, known for its low latency and stable long-distance control. Combined with Crossfire, it delivers a dependable signal even several kilometers out.
