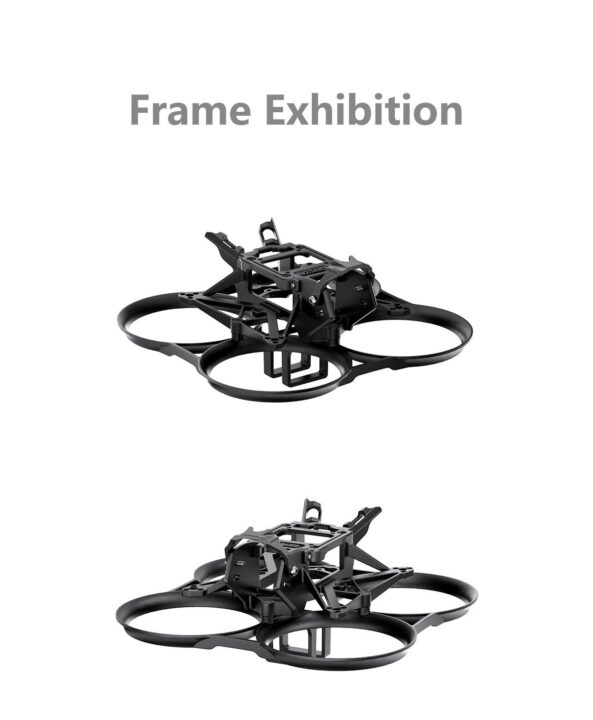

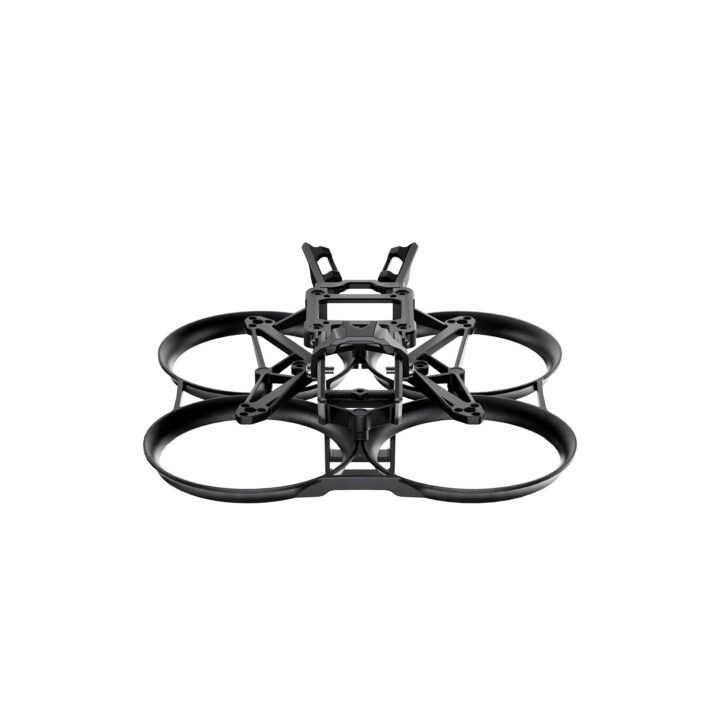

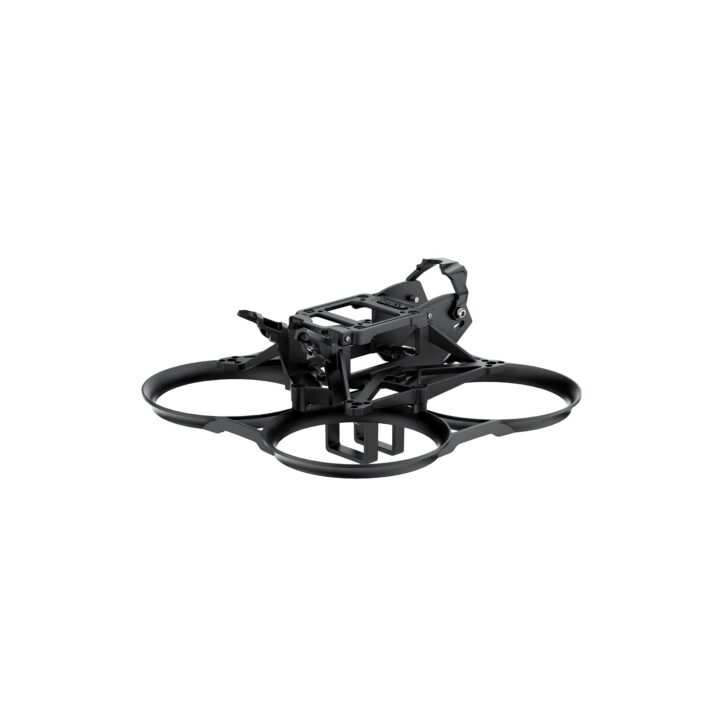

GEP-DS20 Frame
100 AED
Features
-

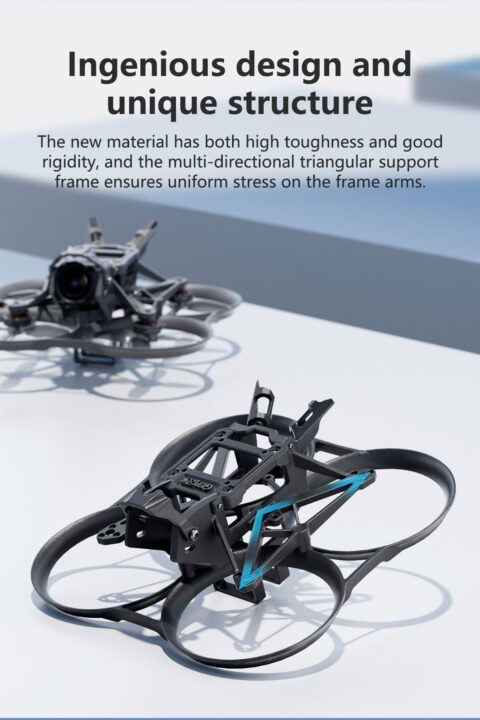

- Â New design concept, lightweight fully injection molded body and multi-directional triangular support frame to ensure strength.

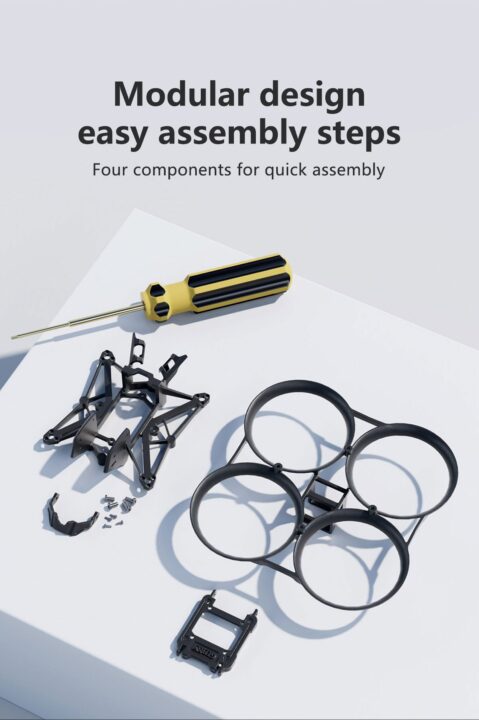

- Â Modular structure, easy to assemble.
- Â Five colors available: white, pink, gray, black, and blue.
- Â Adapted to O3 AIR Unit, Link, and analog image transmission.
- Â Compatible with 1003 and 1102 motors.

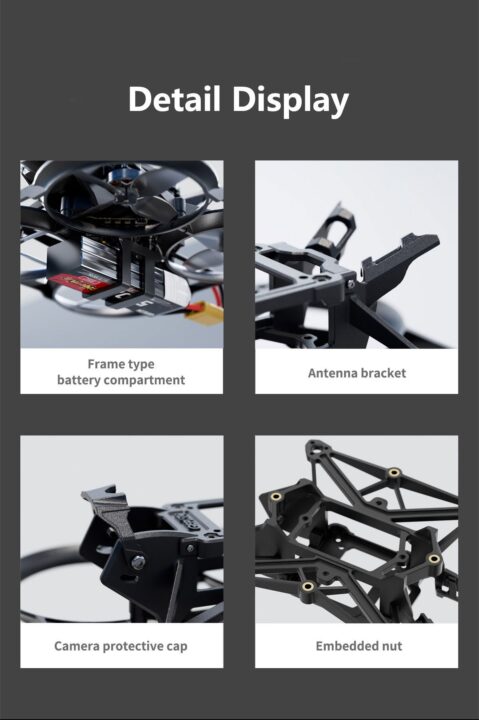

- Â The antenna fixed shield is carefully designed to be both practical and beautiful.
- Â Frame-type battery compartment makes it easier to disassemble and install batteries
Specifications
- Model:GEP-DS20 Frame

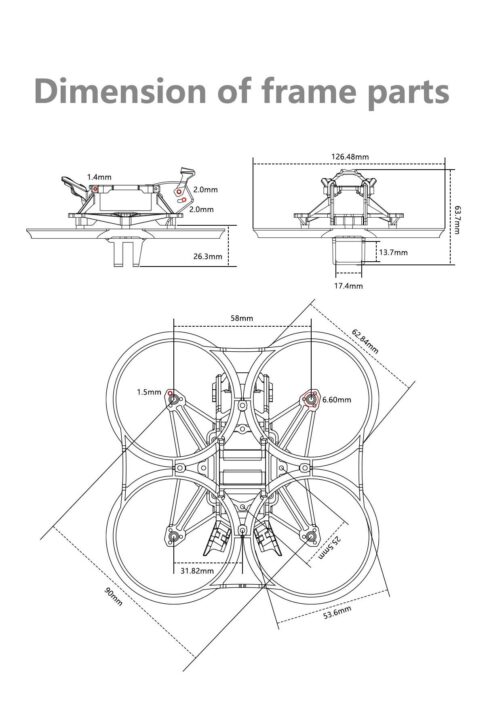

- Dimension:126mm*126mm*57mm
- Wheelbase:90mm
- FC Mount:25.5mm*25.5mm
- VTX Mount:20mm*20mm/25.5mm*25.5mm
- Motor Mount:3-M1.4-φ6.6mm
- Camera size:19mm/20mm
- Battery Slot Width:17.3mm*13.5mm
- Colors:white/pink/gray/black/blue
- Propellers:2 inch
- Weight:26g

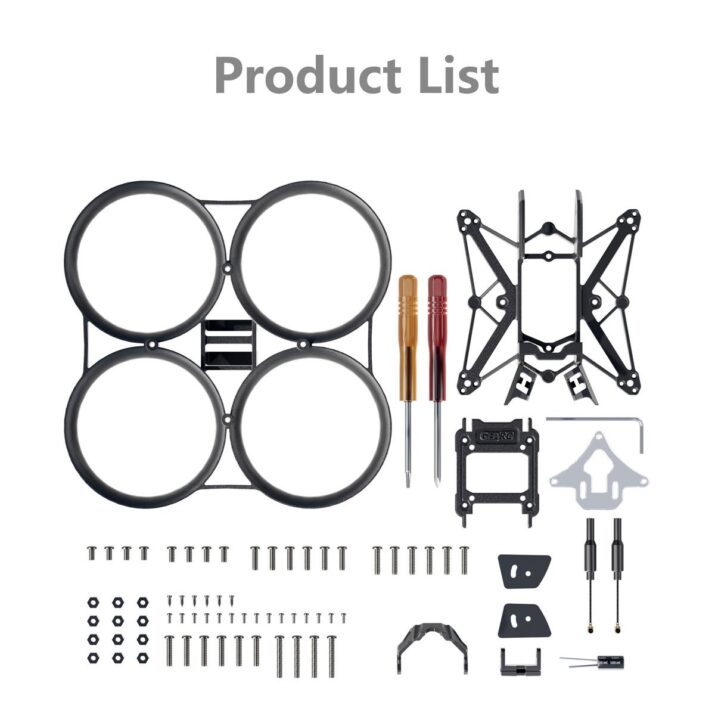

Includes
1 x Integrated Protective Frame
1 x Main Frame
1 x VTX Mounting Plate
1 x Camera Protective Cap
1 x Screw Pack
2 x VTX Antenna
1 x 1.5mm L-type Screwdriver
1 x Torx Screwdriver
| Brand | Geprc |
|---|---|
| Model | GEP-DS20 Frame |
| Dimension | 12mm*126mm*57mm |
| wheelbase | 90mm |
| FC Mount | 25.5mm*25.5mm |
| VTX Mount | 20mm*20mm-25.5mm*25mm |
| Motor Mount | 3-M1.4-66MM |
| Camera Size | 19mm/20mm |
| Battery Slot Width | 17.3mm*13.5mm |
| Colors | black |
| Propeller | 2 inch |
| Weight | 26g |
Out of stock

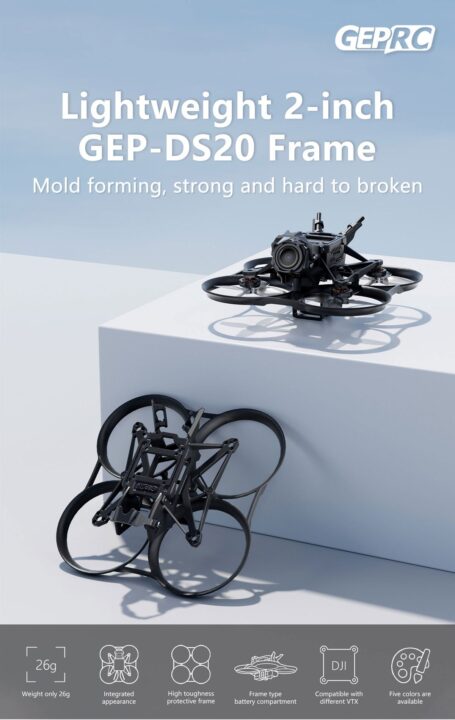

GEP-DS20 is a 2-inch lightweight frame compatible with O3 Air Unit, Link and analog video transmission. It is injection molded using high-quality materials with both toughness and strength. The GEP-DS20 is available in five colors, white ,pink, gray, black and blue.The GEP-DS20 arm axis is combined with a multi-directional triangular support frame to ensure good frame rigidity. Frame-type battery compartment makes it easier to disassemble and install batteries. The frame wheelbase is 90mm and is suitable for 1003/1102 motors with a three-hole base.Ø©
