iFlight Nazgul Evoque F5 V3 O4 6S HD ELRS 2.4GHz RX

iFlight Nazgul Evoque F5 V3 O4 6S HD with ELRS 2.4GHz RX is a high-performance 5-inch FPV drone designed for freestyle flying, cinematic recording, and fast outdoor flights. This configuration includes the DJI O4 Air Unit Pro and a factory-installed iFlight ELRS 2.4GHz receiver.

The Evoque F5 V3 introduces a switchable frame system that can be configured as DeadCat or True X. DeadCat geometry helps keep the propellers outside the camera view for cinematic footage, while True X geometry provides more symmetrical handling for aggressive freestyle maneuvers.

Its Borg Mini F7 flight controller, Borg Mini 60 ESC, XING2 2207 1750KV motors, and Nazgul F5 propellers create a powerful 6S propulsion system. An integrated anti-spark filter, independent BEC outputs, built-in capacitor, cooling channels, and protective body components complete the upgraded V3 platform.

⚡ Key Features

• Switchable DeadCat and True X Geometry
  Choose DeadCat geometry for cleaner cinematic footage or True X geometry for balanced freestyle handling.
• DJI O4 Air Unit Pro
  Provides high-definition FPV transmission and onboard recording at up to 4K/120fps.
• ELRS 2.4GHz Receiver
  Factory-installed iFlight ExpressLRS receiver for compatible 2.4GHz ELRS radios and transmitter modules.
• XING2 2207 1750KV Motors
  Delivers responsive and controlled power for 5-inch freestyle flying on 6S batteries.

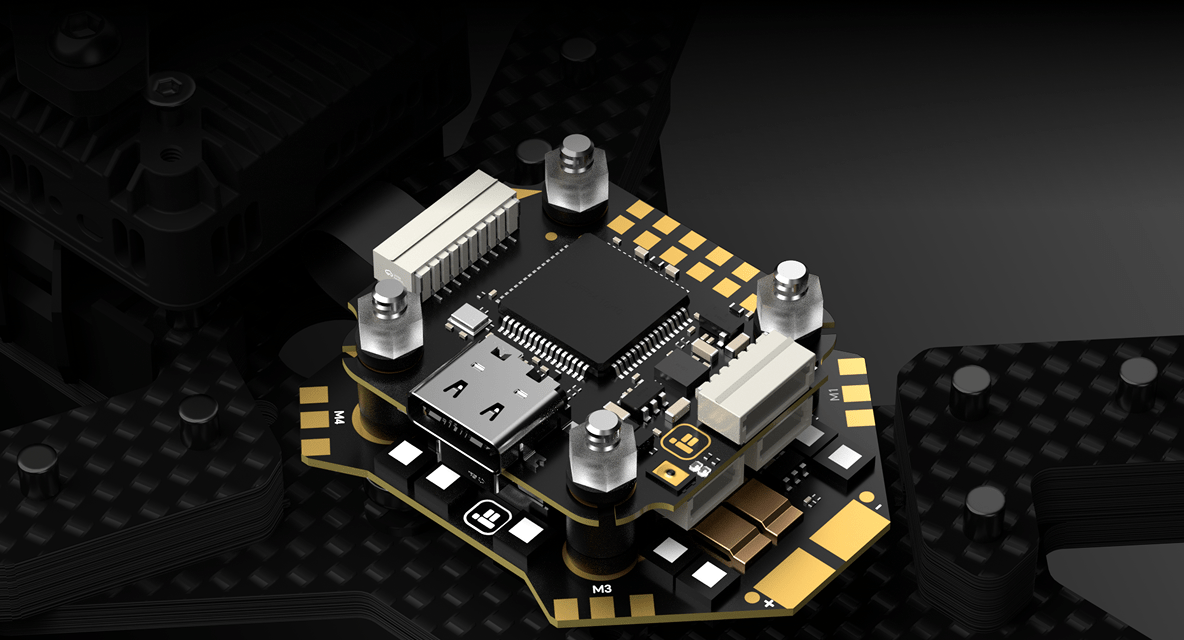

• Borg Mini F7 Flight Controller
  Compact flight-control platform designed for the Evoque F5 V3 electronics system.
• Borg Mini 60 ESC
  Provides up to 60A continuous output per channel with a rated burst current of up to 65A.
• Integrated Anti-Spark Filter
  Reduces connector sparking and sudden current spikes when connecting the flight battery.
• Front-Mounted O4 Air Unit
  Improves airflow and helps reduce interference while keeping the internal wiring organized.
• Fin-Shaped Cooling Channels
  Improves heat dissipation around the enclosed electronics during demanding flights.
• Integrated LED Lighting
  Supports solid and dynamic lighting modes configurable through Betaflight.
• Adjustable Camera Angle
  Camera angle can be adjusted from approximately 10° to 45°.

📡 ELRS 2.4GHz Control Version

This version uses a dedicated ExpressLRS 2.4GHz receiver. It requires a radio or transmitter module operating on the ELRS 2.4GHz band, such as a compatible iFlight Commando transmitter.

ELRS 2.4GHz is not compatible with ELRS 868/915MHz, TBS Crossfire, FrSky, or other unrelated control protocols. The DJI O4 system handles video transmission, while the ELRS receiver provides the radio-control link.

🔋 Recommended Batteries

• 6S 1480mAh LiPo
  Manufacturer test battery and a balanced choice for general freestyle flying.
• 6S 1550mAh LiPo
  Recommended for responsive freestyle performance.
• 6S 1850mAh LiPo
  Suitable for cinematic flying with additional endurance.
• 6S 2200mAh LiPo
  Provides longer flight time with increased weight and softer handling.

The manufacturer lists a common 6S LiPo range of approximately 1380–2400mAh. Actual flight time depends on battery condition, payload, throttle use, wind, temperature, frame geometry, and pilot style.
